Product Summary
EATURES
10 years minimum data retention in the
absence of external power
Data is automatically protected during power
loss
Replaces 32k x 8 volatile static RAM,
EEPROM or Flash memory
Unlimited write cycles
Low-power CMOS
Read and write access times as fast as 70 ns
Lithium energy source is electrically
disconnected to retain freshness until power is
applied for the first time
Full ±10% VCC operating range (DS1230Y)
Optional ±5% VCC operating range
(DS1230AB)
Optional industrial temperature range of
-40°C to +85°C, designated IND
JEDEC standard 28-pin DIP package
New PowerCap Module (PCM) package
- Directly surface-mountable module
- Replaceable snap-on PowerCap provides
lithium backup battery
- Standardized pinout for all nonvolatile
SRAM products
- Detachment feature on PowerCap allows
easy removal using a regular screwdriver
Parametrics
http://pdf1.alldatasheet.com/datasheet-pdf/view/58484/DALLAS/DS1230Y-100-IND.html
Features
http://pdf1.alldatasheet.com/datasheet-pdf/view/58484/DALLAS/DS1230Y-100-IND.html
Diagrams
http://pdf1.alldatasheet.com/datasheet-pdf/view/58484/DALLAS/DS1230Y-100-IND.html
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

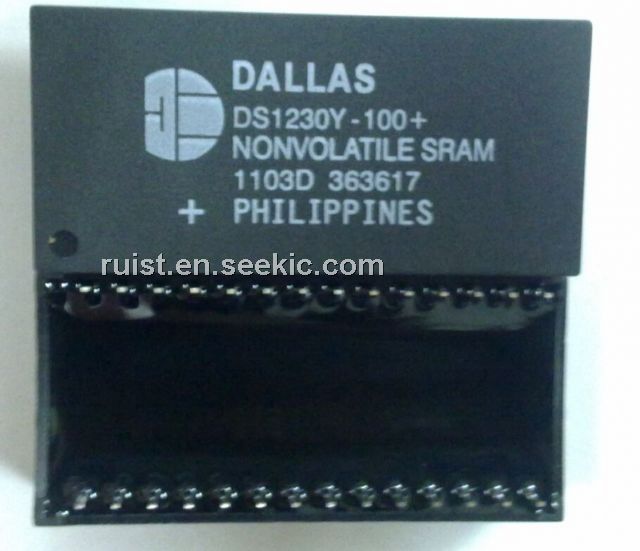

 DS1230Y-100 |
Maxim Integrated Products |
NVRAM 256k Nonvolatile SRAM |
Data Sheet |
Negotiable |
|
||||||||||||
 |
DS1230Y-100+ |
Maxim Integrated Products |
NVRAM 256k Nonvolatile SRAM |
Data Sheet |
|
|
||||||||||||
